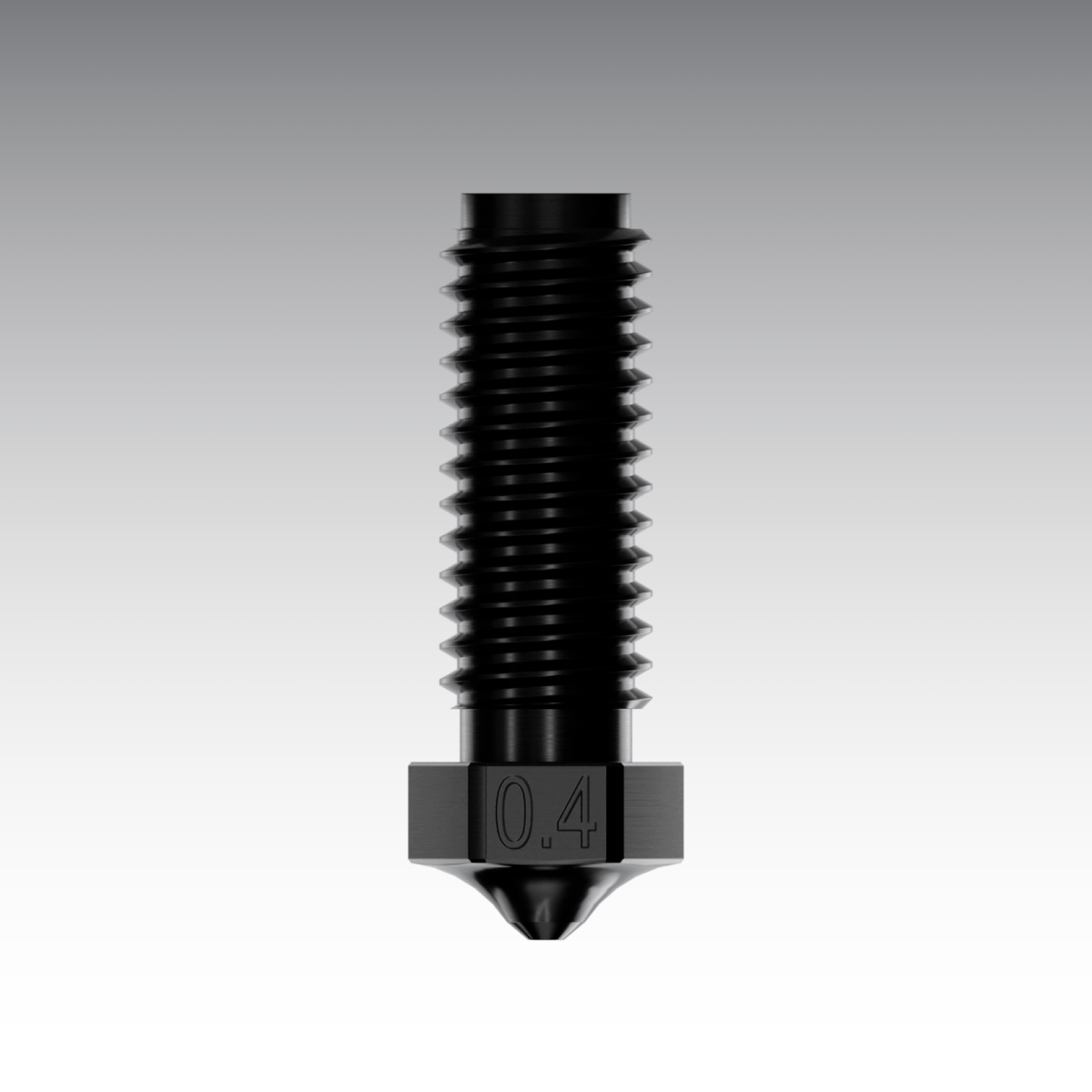

DLC HARDENED STEEL NOZZLE

DLC HARDENED STEEL NOZZLE

Wear-resistance, high temperature performance, suitable for 3D printing composites with abrasive additives such as Carbon Fiber, Steel, Wood, Boron Carbide, Tungsten and Phosphorescent pigment as well as conventional filaments.
Model
Nozzle diameter
Filament diameter
View full details

  • 7.8

    Hardness (Mohs)

  • 450℃

    Maximum Printing Temperature

  • 26W/m·k

    Thermal Conductivity

  • 12μm/m·℃

    Expansion Coefficient

Adaptation Models

1100-PS-HS
1200-PS-HS
1110-PH-HS

175：Φ0.10/Φ0.15/Φ0.20/Φ0.25/Φ0.30/Φ0.35/Φ0.40/Φ0.50/Φ0.60/Φ0.80/Φ1.00
300：Φ0.10/Φ0.15/Φ0.20/Φ0.25/Φ0.30/Φ0.35/Φ0.40/Φ0.50/Φ0.60/Φ0.80/Φ1.00

Performance Analysis

DLC coating on whole nozzle surface with its hardness HV2200, thickness 2μm, and friction coefficient 0.05; Fine finish, low adhesion, high wear resistance.Superior quality imported high-speed steel bars, special post-treatment, high temperature hardness up to HRC62.Overall high temperature resistance 450℃, suitable for PEEK and other special engineering plastics printing.Min. hole diameter 0.2mm (±0.01mm) to meet special application requirements and enable high accuracy printing.
Special processing technology and post-treatment ensure fine orifice and high smooth inner hole.

Applicable Filament

Wear-resistance, high temperature performance, suitable for 3D printing composites with abrasive additives such as Carbon Fiber, Steel, Wood, Boron Carbide, Tungsten and Phosphorescent pigment as well as conventional materials.

Product Features

  • φ0.2

    Min. Orifice Diameter

  • ±0.01mm

    Tolerance

  • ≤Ra0.4μm

    Inner Hole Roughness

  • ≤0.02mm

    Concentricity
